Diagrams are not drawn to scale each link is displayed to look the same size for display purposes only, measurements are displayed in each image in mm.

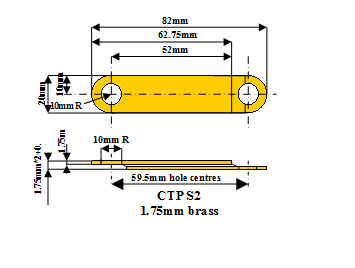

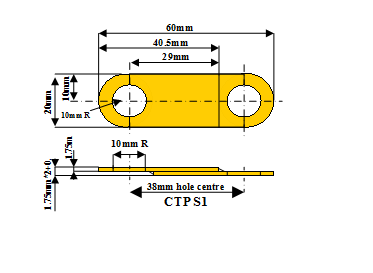

Technical drawings of our most common standard size links, please enquire for more sizes available.
